| Category | Specification |
|---|---|
| Platform | Intel |
| Motherboard Type | Motherboard |
| Socket | LGA 1700 |
| CPU Support | Intel® Core™ 14th GenIntel® Core™ 13th GenIntel® Core™ 12th GenIntel® Pentium® GoldIntel® Celeron® |
| Chipset | Intel® B760 |
| Memory Type | DDR5 |
| Memory Speed | Up to 7800+ MHz (OC) |
| Max Memory Support | 256 GB |
| Memory Channel | Dual Channel |
Hurry and get discounts on all Apple devices up to 20%
Sale_coupon_15
Original price was: ₹33,999.00.₹13,999.00Current price is: ₹13,999.00.
Pick up from the Woodmart Store
To pick up today
Free
Courier delivery
Our courier will deliver to the specified address
2-3 Days
Free
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
Free
Warranty 1 year
Free 30-Day returns
Payment Methods:
| Category | Specification |
|---|---|

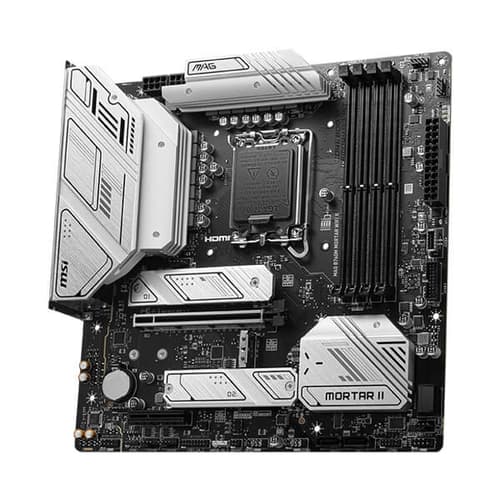

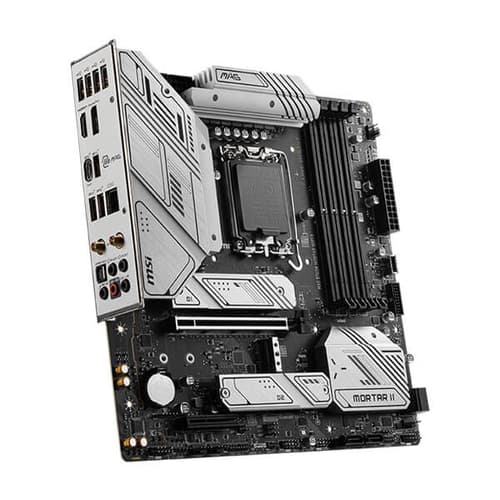

| Model | MSI MAG B760M MORTAR WIFI II |
| Platform | Intel |
| Socket | LGA 1700 |
| CPU Support | Intel® Core™ 14th GenIntel® Core™ 13th GenIntel® Core™ 12th GenIntel® Pentium® GoldIntel® Celeron® |
| Chipset | Intel® B760 |
| Memory Type | DDR5 |
| Memory Slots | 4 × DDR5 DIMM |
| Max Memory Support | 192 GB |
| Memory Speed | Up to 7800+ MHz (OC) |
| Memory Channel | Dual Channel |
| Memory Features | Non-ECC, Un-buffered MemoryIntel® Extreme Memory Profile (XMP) |
| Graphics Output | 1 × HDMI 2.1 (4K @60Hz)1 × DisplayPort 1.4 (4K @60Hz) |
| Expansion Slots | 1 × PCIe 5.0 x16 (CPU)1 × PCIe 3.0 x4 (Chipset) |
| Storage – M.2 | 3 × M.2 Slots• 1 × PCIe 4.0 x4 (CPU)• 2 × PCIe 4.0 x4 / SATA (Chipset) |
| Storage – SATA | 4 × SATA 6Gb/s |
| RAID Support | RAID 0 / 1 / 5 / 10 (SATA) |

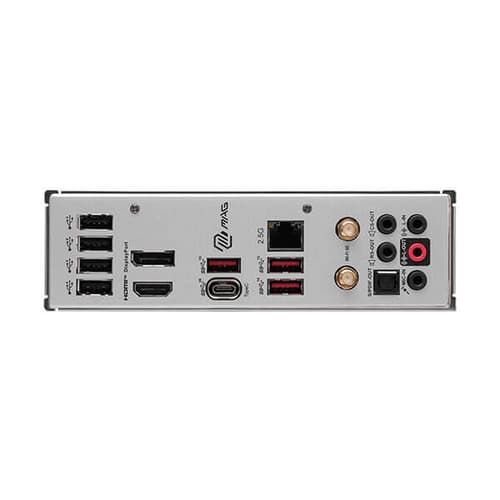

| USB Ports (Rear) | USB 2.0USB 3.2 Gen 2 Type-A (10Gbps)USB 3.2 Gen 2×2 Type-C (20Gbps) |
| USB Ports (Front) | USB 2.0USB 3.2 Gen 1 Type-AUSB 3.2 Gen 2 Type-C |
| LAN | Realtek® 2.5Gbps Ethernet |
| Wireless | Intel® Wi-Fi 6E (802.11ax)Bluetooth® 5.3 |
| Audio | Realtek® ALC897 Codec7.1-Channel HD AudioS/PDIF Output |
| Power Design | 12+1+1 Duet Rail Power SystemDual 8-Pin CPU Power |
| Thermal Solution | Extended Heatsink DesignM.2 Shield Frozr |
| PCB Design | 6-Layer PCB, 2oz Thickened Copper |
| Form Factor | Micro-ATX |
| Dimensions | 243.84 × 243.84 mm |
| Operating System | Windows® 11 64-bitWindows® 10 64-bit |
| Warranty | 3 Years |
