| Category | Specification |
|---|---|
| Platform | Intel |
| Socket | LGA 1700 |
| CPU Support | 14th Gen Intel® Core™13th Gen Intel® Core™12th Gen Intel® Core™Pentium® GoldCeleron® |
| Chipset | Intel® B760 |
| Memory Type | DDR5 |
| Memory Speed | Up to 7600 MT/s (OC) |
| Max Memory Support | 256 GB |
| Memory Channel | Dual Channel |
| Memory Features | ECC Un-buffered DIMM 1Rx8/2Rx8 (Non-ECC mode)Non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16Intel® XMP Support |
| Graphics Output | 2 × DisplayPort1 × HDMI |
| Expansion Slots (CPU) | 1 × PCIe 4.0 x16 (x16 mode)Supports GPU or NVMe SSD only |
| Expansion Slots (Chipset) | 2 × PCIe 3.0 x1 |
| Wireless Networking | Wi-Fi 6E (802.11ax)Bluetooth 5.3 |
Hurry and get discounts on all Apple devices up to 20%
Sale_coupon_15
Original price was: ₹22,000.00.₹14,999.00Current price is: ₹14,999.00.
Pick up from the Woodmart Store
To pick up today
Free
Courier delivery
Our courier will deliver to the specified address
2-3 Days
Free
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
Free
Warranty 1 year
Free 30-Day returns
Payment Methods:
| Category | Specification |
|---|---|
| Platform | Intel |
| Socket | LGA 1700 |
| CPU Support | 13th Gen Intel® Core™12th Gen Intel® Core™Pentium® GoldCeleron® |
| Chipset | Intel® B760 Express |
| VRM Design | Hybrid 6+2+1 Phases Digital VRM |
| Memory Type | DDR5 |
| Memory Slots | 4 × DDR5 DIMM |
| Max Memory Support | Up to 192 GB |
| Memory Speed | Up to 7600+ MT/s (OC) |
| Memory Channel | Dual Channel |
| Memory Support | XMP, ECC (Non-ECC mode), Non-ECC Unbuffered |
| Integrated Graphics | Intel® HD Graphics (CPU dependent) |
| Video Outputs | 1 × HDMI 2.0 (4K@60Hz)2 × DisplayPort 1.2 (4K@60Hz) |
| Multi-Display | Supports up to Triple Display |
| Expansion Slots | 1 × PCIe 4.0 x16 (EZ-Latch)2 × PCIe 3.0 x1 |
| Storage | 2 × M.2 PCIe 4.0 x44 × SATA 6Gb/s |
| RAID Support | RAID 0 / 1 / 5 / 10 (SATA) |
| M.2 Cooling | M.2 Thermal Guard |
| LAN | Realtek® 2.5Gb Ethernet |
| Wireless | Wi-Fi 6E (802.11ax)Bluetooth 5.2 / 5.3 (PCB revision dependent) |
| USB (Rear) | 1 × USB-C 3.2 Gen2 (10Gbps)3 × USB 3.2 Gen12 × USB 2.0 |
| USB (Front) | 2 × USB 3.2 Gen14 × USB 2.0 |
| Audio | Realtek® HD Audio Codec2/4/5.1/7.1-ChannelS/PDIF Out |
| Cooling Features | Smart Fan 6Multiple Temp SensorsHybrid Fan Headers with FAN STOP |
| Internal Connectors | 24-pin ATX Power8-pin CPU PowerCPU Fan + 3 System Fan HeadersRGB & ARGB HeadersTPM Header |

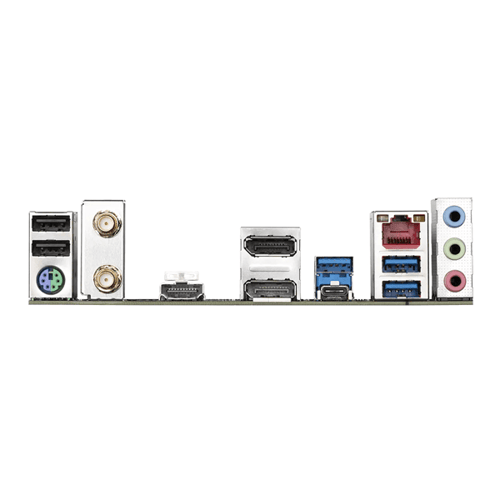

| Back Panel I/O | PS/2 PortWi-Fi Antenna PortsHDMI2 × DisplayPortUSB PortsRJ-45 LANAudio Jacks |
| BIOS | 128 Mbit AMI UEFI BIOSQ-Flash / Q-Flash Plus |
| Software Features | GIGABYTE Control Center (GCC) |
| Operating System | Windows 11 64-bitWindows 10 64-bit |
| Form Factor | Micro-ATX |
| Dimensions | 24.4 cm × 24.4 cm |
| Warranty | 3 Years |
