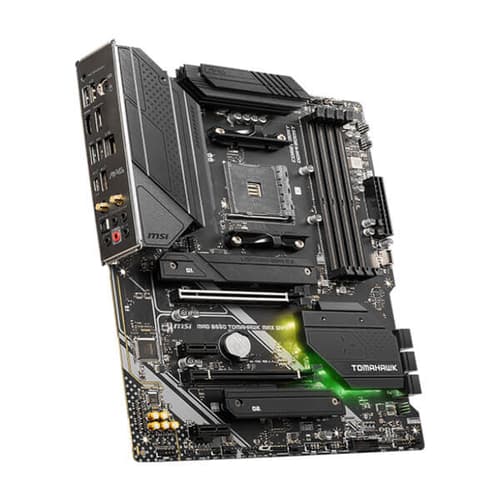

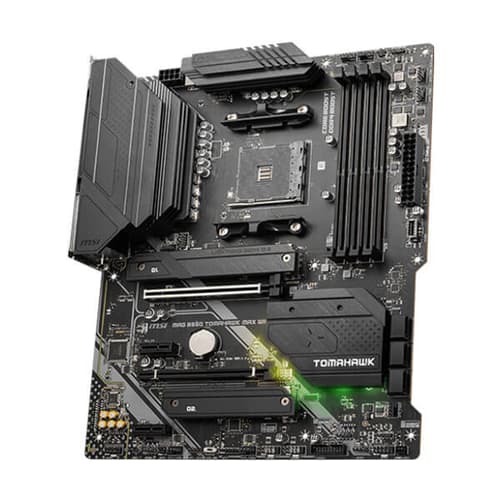

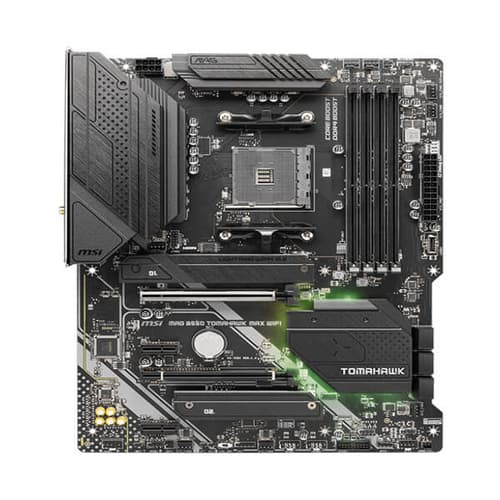

MSI MAG B550 Tomahawk MAX WIFI Motherboard
MSI MAG B550 Tomahawk MAX WIFI Motherboard - Image 2
MSI MAG B550 Tomahawk MAX WIFI Motherboard - Image 3
MSI MAG B550 Tomahawk MAX WIFI Motherboard - Image 4
MSI MAG B550 Tomahawk MAX WIFI Motherboard - Image 5

MSI MAG B550 Tomahawk MAX WIFI Motherboard

 Motherboard Specifications

Feature Details
Platform AMD
Socket AM4
CPU Support Ryzen 5000 / 5000 G / 4000 G / 3000 Series
Chipset B550
Form Factor ATX
Max Memory Support 128 GB
Memory Speed Up to 5100+ MHz (OC)
Memory Type DDR4
Channel Supported Dual Channel
Memory Features Supports non-ECC UDIMM, ECC UDIMM, Un-buffered memory
Warranty 3 Years

Graphics

Feature Details
Ports 1 × HDMI 2.1, 1 × DisplayPort 1.4
Note Display output depends on CPU graphics support

Expansion Slots

Slot Details
PCIe x16 1 × PCIe 4.0/3.0 (PCI_E1)
PCIe x16 1 × PCIe 3.0 (PCI_E3), supports x4 speed
PCIe x1 2 × PCIe 3.0

Storage

Interface Details
M.2 2 × M.2 (M-Key)
SATA 6 × SATA 6Gb/s

USB Ports

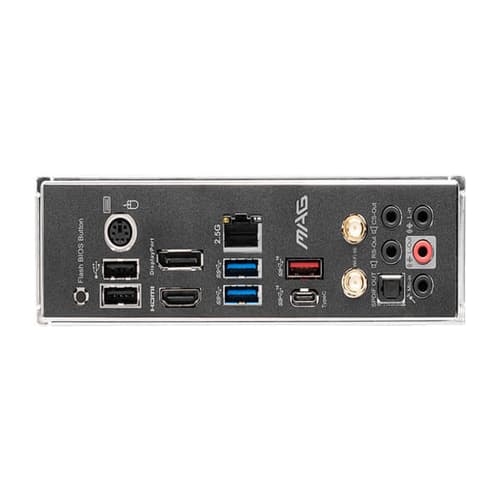

Rear Panel

  • 1 × USB 3.2 Gen 2 Type-A (10Gbps)
  • 1 × USB 3.2 Gen 2 Type-C (10Gbps)
  • 1 × USB 3.2 Gen 1 Type-A (5Gbps)
  • 1 × USB 2.0
  • Flash BIOS Button

Internal

  • 1 × USB 3.2 Gen 1 Type-C
  • 1 × USB 3.2 Gen 1 connector (supports 2 additional USB 3.2 Gen 1 ports)
  • 2 × USB 2.0 connectors (supports 4 additional USB 2.0 ports)

Networking

Feature Details
LAN 2.5G LAN
Wireless Wi-Fi 6E, Bluetooth 5.2
Antenna Included (for Wi-Fi / Bluetooth)

Audio

Feature Details
Audio Connectors 7.1-Channel HD Audio
Optical S/PDIF OUT

Internal Connectors

Connector Quantity
24-pin ATX Power 1
8-pin CPU Power 1
CPU Fan 1 × 4-pin
Water Pump Fan 1 × 4-pin
System Fans 6 × 4-pin
Front Panel Audio 1
System Panel 2
Chassis Intrusion 1
RGB LED (4-pin) 2
RGB LED (3-pin Rainbow) 2
TPM Module 1
Clear CMOS Jumper 1



Apple Shopping Event

Hurry and get discounts on all Apple devices up to 20%

Sale_coupon_15

Original price was: ₹34,999.00.Current price is: ₹17,199.00.

Add to compare
Add to wishlist
19 People watching this product now!
  • Pick up from the Woodmart Store

To pick up today

Free

  • Courier delivery

Our courier will deliver to the specified address

2-3 Days

Free

  • DHL Courier delivery

DHL courier will deliver to the specified address

2-3 Days

Free

  • Warranty 1 year

More details

  • Free 30-Day returns

More details

Payment Methods:

Description

 Key Features

  • CPU Support: Compatible with AMD Ryzen™ 5000 Series, 5000 G-Series, 4000 G-Series, and 3000 Series processors.
  • Memory: Supports DDR4 memory up to 5100+ MHz (OC) for high-speed performance.
  • Gaming Performance: Lightning-fast experience with PCIe 4.0, Lightning Gen 4 x4 M.2 with M.2 Shield Frozr, and AMD Turbo USB 3.2 Gen 2.
  • Premium Thermal Solution: Extended heatsink design, additional choke thermal pad rated at 7W/mK, and 2oz thickened copper PCB ensure stable performance for intense gaming sessions.
  • Enhanced Power Design: 10+2+1 Duet Rail Power System with Digital PWM, Core Boost, and DDR4 Boost for reliable power delivery.
  • Networking: 2.5G LAN and AMD Wi-Fi 6E for fast, secure, and stable connections for professional and gaming use.
  • Pre-installed I/O Shield: Provides better EMI protection and easy installation.
  • Audio Boost: Studio-grade sound quality for immersive gaming audio.
  • Multi-GPU Support: Steel Armor PCI-E slots, compatible with AMD Crossfire.
