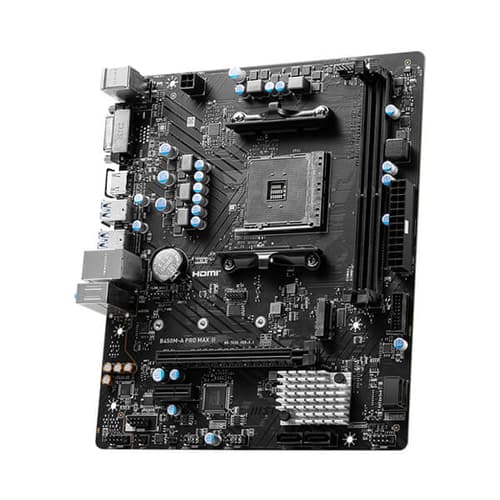

MSI B450M-A Pro Max II Motherboard
MSI B450M-A Pro Max II Motherboard - Image 2
MSI B450M-A Pro Max II Motherboard - Image 3
MSI B450M-A Pro Max II Motherboard - Image 4
MSI B450M-A Pro Max II Motherboard - Image 5

MSI B450M-A Pro Max II Motherboard



 Motherboard Specifications

Feature Details
Platform AMD
Socket AM4
CPU Support Ryzen 5000 / 5000-G / 4000-G / 3000 / 2000 Series
Chipset B450
Form Factor Micro-ATX
Warranty 3 Years

Memory

Feature Details
Memory Type DDR4
Memory Slots 2 × DIMM
Max Memory Support 64 GB
Memory Speed Up to 4133 MHz (OC)
Channel Supported Dual Channel
Memory Features Supports non-ECC UDIMM, ECC UDIMM (non-ECC mode), Un-buffered memory

Graphics

Feature Details
Graphics Ports 1 × HDMI, 1 × DVI-D
Note Display output depends on CPU graphics support

Expansion Slots

Slot Details
PCIe x16 1 × PCIe 3.0 (CPU)
PCIe x1 1 × PCIe 2.0 (Chipset)

Back Panel I/O Ports

Ports
Keyboard / Mouse (PS/2)
DVI-D
HDMI
1 × USB 3.2 Gen 1 Type-A (5 Gbps)
2.5G LAN
Audio connectors
USB 2.0

Internal I/O Connectors

Connector Quantity
24-pin ATX Power (ATX_PWR) 1
8-pin CPU Power (CPU_PWR) 1
CPU Fan Header 1
System Fan Header 1
Front Panel Header (JFP) 2
Chassis Intrusion (JCI) 1
Front Audio Header (JAUD) 1
COM Port Header (JCOM) 1
TPM Header (TPM 2.0) 1
USB 2.0 Headers 2 (4 ports)
USB 3.2 Gen 1 Header (5 Gbps Type-A) 1 (2 ports)



Apple Shopping Event

Hurry and get discounts on all Apple devices up to 20%

Sale_coupon_15

Original price was: ₹12,750.00.Current price is: ₹6,299.00.

Compare
Add to wishlist
10 People watching this product now!
  • Pick up from the Woodmart Store

To pick up today

Free

  • Courier delivery

Our courier will deliver to the specified address

2-3 Days

Free

  • DHL Courier delivery

DHL courier will deliver to the specified address

2-3 Days

Free

  • Warranty 1 year

More details

  • Free 30-Day returns

More details

Payment Methods:

Description

 Key Features

  • AMD AM4 Micro-ATX Motherboard inspired by architectural design
  • Supports AMD Ryzen™ 5000 / 4000G / 3000 / 2000 / 1000 Series & Athlon™ with Radeon™ Vega Graphics
  • DDR4 Boost – Supports memory speeds up to 4133 MHz (OC)
  • Turbo M.2 – PCIe Gen3 x4 for ultra-fast NVMe SSD performance
  • Audio Boost – Studio-grade sound quality
  • 2.5G LAN – High-speed, stable networking for gaming & professional use
  • Core Boost – Premium layout & digital power design for better CPU performance
  • X-Boost Software – Boosts storage & USB device performance
Item Details
Model MSI B450M-A PRO MAX II
Platform AMD
Socket AM4
Chipset AMD B450
Form Factor Micro-ATX
PCB Dimensions 200 × 236 mm
Warranty 3 Years

CPU Support

Supported Processors
Ryzen™ 5000 Series
Ryzen™ 5000 G-Series
Ryzen™ 4000 G-Series
Ryzen™ 3000 / 3000 G-Series
Ryzen™ 2000 / 2000 G-Series
Ryzen™ 1000 Series
Athlon™ with Radeon™ Vega Graphics

Memory

Feature Details
Memory Type DDR4
Memory Slots 2 × DIMM
Max Capacity 64GB
Architecture Dual Channel
Memory Speed Up to 4133 MHz (OC)
ECC Support ECC UDIMM (non-ECC mode)
Memory Type Support Non-ECC UDIMM, Un-buffered

Onboard Graphics

Output Details
HDMI HDMI 1.4, up to 4K @ 24Hz
DVI-D Up to 1920 × 1200 @ 60Hz
Note Display output depends on CPU

Expansion Slots

Slot Details
PCIe x16 1 × PCIe 3.0 (CPU)
PCIe x1 1 × PCIe 2.0 (Chipset)

Storage

Interface Details
M.2 1 × M.2 (PCIe 3.0 x4 / SATA, 2242 / 2260 / 2280)
SATA 4 × SATA 6Gb/s
RAID RAID 0 / RAID 1 / RAID 10 (SATA)

USB Ports

Rear Panel

  • 4 × USB 3.2 Gen 1 Type-A
  • 2 × USB 2.0

Front Panel

  • 2 × USB 3.2 Gen 1 Type-A
  • 4 × USB 2.0

LAN

Feature Details
Controller Realtek® RTL8125
Speed 2.5 Gigabit LAN

Audio

Feature Details
Codec Realtek® ALC897
Channels 7.1-Channel HD Audio
Audio Tech Audio Boost

Internal I/O Connectors

Connector Type Quantity
ATX Power Connector 1
CPU Power Connector 1
CPU Fan Header 1
System Fan Header 1
Front Panel Headers 2
Front Audio Header 1
Chassis Intrusion 1
COM Port Header 1
TPM Header (TPM 2.0) 1
USB 2.0 Headers 2 (4 ports)
USB 3.2 Gen 1 Header 1 (2 ports)

Back Panel I/O

Ports
PS/2 Keyboard / Mouse
DVI-D
HDMI
2.5G LAN
USB 3.2 Gen 1 Type-A
USB 2.0
Audio Jacks

Operating System Support

OS
Windows® 11 (64-bit)
Windows® 10 (64-bit)
