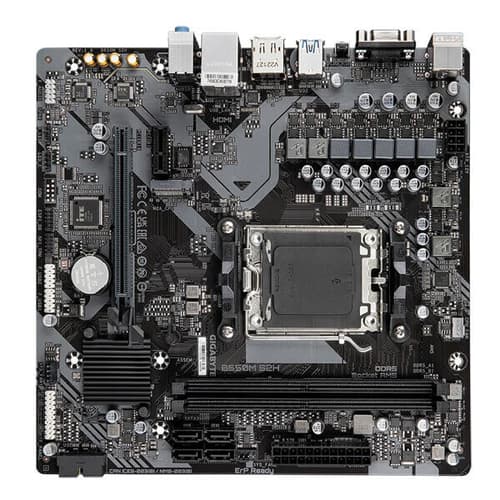

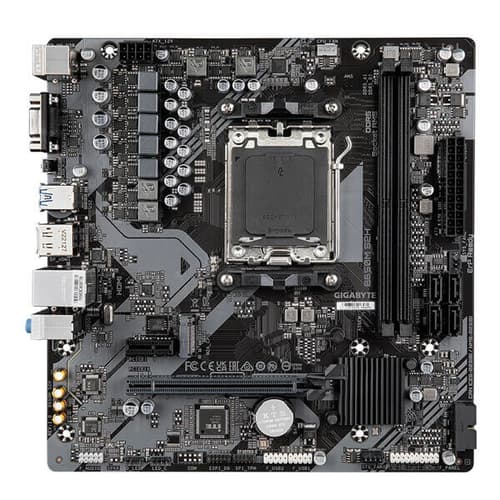

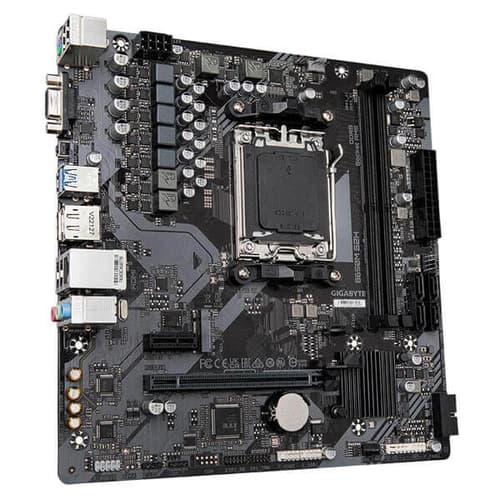

Gigabyte B650M S2H M-ATX Motherboard
Gigabyte B650M S2H M-ATX Motherboard - Image 2
Gigabyte B650M S2H M-ATX Motherboard - Image 3
Gigabyte B650M S2H M-ATX Motherboard - Image 4
Gigabyte B650M S2H M-ATX Motherboard - Image 5

Gigabyte B650M S2H M-ATX Motherboard

Category Specification
Platform AMD
Socket AM5
CPU Support AMD Ryzen™ 9000 / 8000 / 7000 Series
Chipset AMD B650
Memory Type DDR5
Memory Speed Up to 7200 MT/s (OC)
Maximum Memory Support 128 GB
Memory Channels Dual Channel

Apple Shopping Event

Hurry and get discounts on all Apple devices up to 20%

Sale_coupon_15

Original price was: ₹14,950.00.Current price is: ₹8,899.00.

Add to compare
Add to wishlist
17 People watching this product now!
  • Pick up from the Woodmart Store

To pick up today

Free

  • Courier delivery

Our courier will deliver to the specified address

2-3 Days

Free

  • DHL Courier delivery

DHL courier will deliver to the specified address

2-3 Days

Free

  • Warranty 1 year

More details

  • Free 30-Day returns

More details

Payment Methods:

Description



GIGABYTE B650M S2H – Key Features

  • AMD Socket AM5: Supports AMD Ryzen™ 7000 / 8000 / 9000 Series Processors
  • Reliable Performance: 5+2+2 Phases Digital VRM design for stable power delivery
  • Dual Channel DDR5: 2 × SMD DIMM slots with AMD EXPO™ & Intel XMP memory support
  • SuperSpeed Storage: PCIe 4.0 x4 M.2 connector for high-speed NVMe SSDs
  • EZ-Latch: PCIe x16 slot with quick-release design for easy GPU removal
  • Fast Networking: Realtek Gigabit LAN
  • Extended Display Connectivity: DisplayPort, HDMI, and D-Sub (VGA)
  • Smart Fan 6: Multiple temperature sensors, hybrid fan headers, and FAN STOP technology
  • Q-Flash Plus: Update BIOS without installing CPU, memory, or graphics card

Technical Specifications

General

Category Specification
Model GIGABYTE B650M S2H
Platform AMD
Socket AM5
Chipset AMD B650
Form Factor Micro-ATX (23.0 × 22.5 cm)
Warranty 3 Years Manufacturer Warranty

CPU Support

Feature Details
Supported CPUs AMD Ryzen™ 7000 / 8000 / 9000 Series

Memory

Feature Details
Memory Type DDR5
DIMM Slots 2
Max Capacity 128 GB
Memory Speed Up to 6400 MT/s (OC)
Architecture Dual Channel
DIMM Support Non-ECC, Un-buffered (1Rx8 / 2Rx8 / 1Rx16)
Memory Profiles AMD EXPO™ & Intel XMP
Note Memory speed and compatibility depend on CPU & DIMM configuration

Onboard Graphics

Output Specification
D-Sub (VGA) 1920 × 1200 @ 60Hz
DisplayPort DP 1.4, 3840 × 2160 @ 144Hz
HDMI HDMI 2.1, 4096 × 2160 @ 60Hz
Multi-Display Supports up to 3 displays simultaneously

Audio

Feature Details
Audio Codec Realtek® Audio
Channels 2 / 4 / 5.1 / 7.1-Channel HD Audio

LAN

Feature Details
LAN Chip Realtek Gigabit LAN (10/100/1000 Mbps)

Expansion Slots

Slot Specification
PCIe x16 1 × PCIe 4.0 (CPU)
PCIe x1 1 × PCIe 3.0 (Chipset)

PCIe x16 Bandwidth by CPU:

  • Ryzen™ 7000 / 9000 → PCIe 4.0 x16
  • Ryzen™ 8000 Phoenix 1 → PCIe 4.0 x8
  • Ryzen™ 8000 Phoenix 2 → PCIe 4.0 x4

Note: PCIEX16 slot supports either a graphics card or an NVMe SSD.

Storage

Interface Details
M.2 1 × PCIe 4.0 x4 (CPU)
SATA 4 × SATA 6Gb/s
RAID RAID 0 / 1 / 10 (NVMe & SATA)

USB Support

Rear USB

  • 2 × USB 3.2 Gen 1
  • 4 × USB 2.0 / 1.1

Internal USB

  • 1 × USB 3.2 Gen 1 Header
  • 2 × USB 2.0 / 1.1 Headers

Internal I/O Connectors

Connector Quantity
24-pin ATX Power 1
8-pin CPU Power 1
CPU Fan Header 1
System Fan Headers 2
Addressable RGB Header 1
RGB Header 1
M.2 Socket 3 1
SATA 6Gb/s 4
Front Panel Header 1
Front Audio Header 1
TPM Header (TPM 2.0) 1
Clear CMOS Jumper 1

Back Panel I/O

  • 4 × USB 2.0 / 1.1
  • 2 × USB 3.2 Gen 1
  • 1 × PS/2 Keyboard / Mouse
  • 1 × D-Sub
  • 1 × DisplayPort
  • 1 × HDMI
  • 1 × RJ-45 LAN
  • 3 × Audio Jacks
  • 1 × Q-Flash Plus Button

BIOS

Feature Details
BIOS 256 Mbit AMI UEFI BIOS
Standards PnP 1.0a, DMI 2.7, ACPI 5.0

Software & OS Support

Category Details
Utility GIGABYTE Control Center (GCC)
BIOS Tools Q-Flash, Q-Flash Plus
Bundled Software Norton Internet Security (OEM)
OS Support Windows 11 (64-bit), Windows 10 (64-bit)
