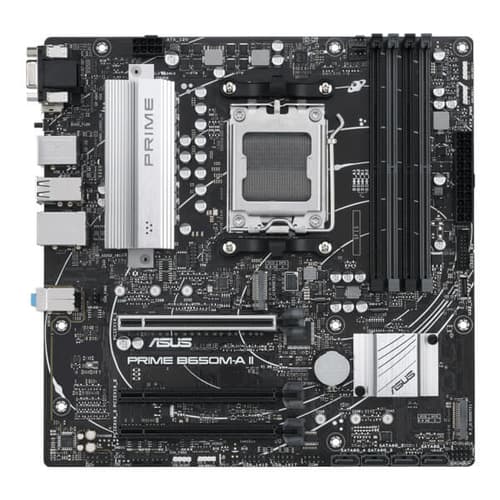

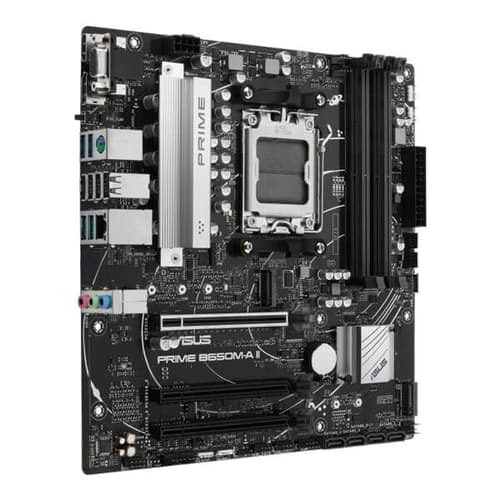

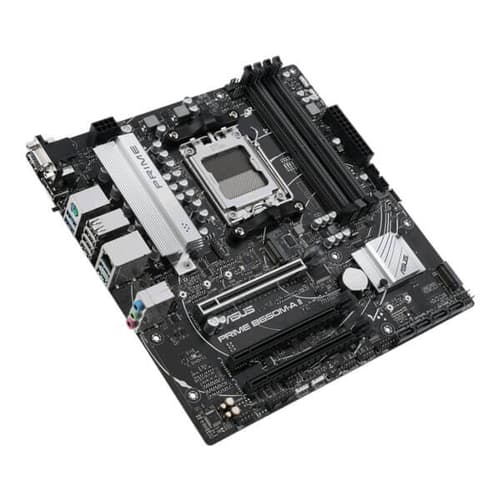

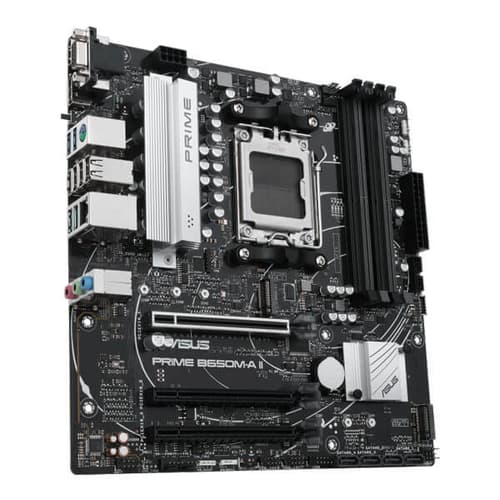

Asus Prime B650M-A II-CSM M-ATX Motherboard
Asus Prime B650M-A II-CSM M-ATX Motherboard - Image 2
Asus Prime B650M-A II-CSM M-ATX Motherboard - Image 3
Asus Prime B650M-A II-CSM M-ATX Motherboard - Image 4
Asus Prime B650M-A II-CSM M-ATX Motherboard - Image 5
Asus Prime B650M-A II-CSM M-ATX Motherboard - Image 6

Asus Prime B650M-A II-CSM M-ATX Motherboard

Category Details
Product Type Motherboard
Platform AMD
Socket AM5
CPU Support AMD Ryzen™ 9000 / 8000 / 7000 Series
Chipset AMD B650
Memory Speed Up to 7600+ MT/s (OC)
Max Memory Support 192 GB
Supported Memory Type DDR5
Memory Channel Dual Channel

Apple Shopping Event

Hurry and get discounts on all Apple devices up to 20%

Sale_coupon_15

Original price was: ₹25,000.00.Current price is: ₹10,440.00.

Add to compare
Add to wishlist
16 People watching this product now!
  • Pick up from the Woodmart Store

To pick up today

Free

  • Courier delivery

Our courier will deliver to the specified address

2-3 Days

Free

  • DHL Courier delivery

DHL courier will deliver to the specified address

2-3 Days

Free

  • Warranty 1 year

More details

  • Free 30-Day returns

More details

Payment Methods:

Description



ASUS PRIME B650M-A II-CSM – Key Features

  • AMD AM5 Socket – Supports Ryzen™ 7000 / 8000 / 9000 Series
  • PCIe 5.0 M.2 for next-gen ultra-fast storage
  • Realtek 2.5Gb Ethernet for high-speed networking
  • DDR5 Memory up to 7600+ MT/s (OC) with ASUS OptiMem II
  • Comprehensive Cooling: VRM & PCH heatsinks, Fan Xpert 2+
  • Aura Sync RGB with Addressable Gen 2 & RGB headers
  • BIOS FlashBack™ – Update BIOS without CPU/RAM/GPU
  • ASUS Corporate Stable Model (CSM) – 36-month lifecycle support
  • ASUS Control Center Express (ACCE) for IT management

Technical Specifications

General

Item Details
Model ASUS PRIME B650M-A II-CSM
Platform AMD
Socket AM5
Chipset AMD B650
Form Factor Micro-ATX (24.4 × 24.4 cm)
Warranty 3 Years

CPU & Memory

Item Details
CPU Support Ryzen™ 9000 / 8000 / 7000 Series
Memory Slots 4 × DDR5 DIMM
Max Memory 192 GB
Memory Speed Up to 7600+ MT/s (OC)
Memory Features Dual Channel, EXPO™, ECC/Non-ECC (Un-buffered), OptiMem II

Graphics & Expansion

Item Details

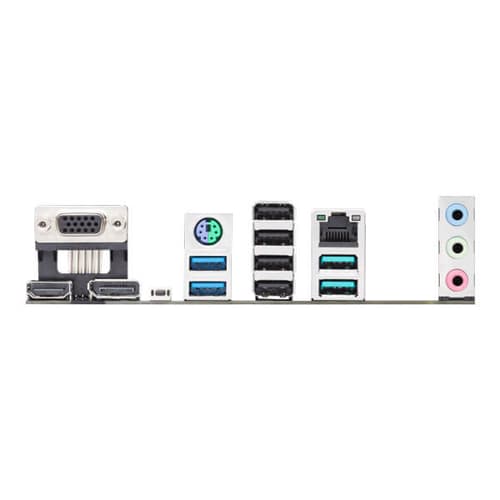

Display Outputs 1 × DisplayPort, 1 × HDMI®, 1 × VGA
PCIe Slots 1 × PCIe 4.0 x16 (CPU)
2 × PCIe 4.0 x16 (Chipset, x1 mode)

Storage

Item Details
M.2 Slots 2 × M.2
M.2_1 PCIe 5.0 x4 (Ryzen 7000) / PCIe 4.0 x4 (Ryzen 8000)
M.2_2 PCIe 4.0 x4 (Chipset)
SATA 4 × SATA 6Gb/s

Networking & Audio

Item Details
LAN Realtek 2.5Gb Ethernet
Audio Realtek 7.1 HD Audio (24-bit/192kHz)
Audio Features Audio Shielding, Premium Capacitors

USB Connectivity

Location Ports
Rear USB 2 × USB 3.2 Gen 2, 2 × USB 3.2 Gen 1, 4 × USB 2.0
Front USB USB 3.2 Gen 1 Type-C®, 2 × USB 3.2 Gen 1, 4 × USB 2.0

Internal Headers & Extras

Category Details
Fan Headers CPU, CPU OPT, 3 × Chassis
RGB Headers 3 × Addressable Gen 2, 1 × Aura RGB
Power 24-pin ATX, 8-pin CPU
Others TPM Header, COM Port, Clear CMOS, S/PDIF

Software & BIOS

Item Details
BIOS 256 Mb UEFI AMI BIOS
Utilities Armoury Crate, AI Suite 3, Fan Xpert 2+
OS Support Windows® 11 / Windows® 10 (64-bit)
