| Category | Details |
|---|---|
| Platform | INTEL |
| Socket | LGA 1700 |
| CPU Support | 14th Gen / 13th Gen / 12th Gen Intel® Core™Pentium® GoldCeleron® Processors |
| Chipset | Intel® Z790 |
| Memory Type | DDR5 |
| Max Memory Support | 256 GB |
| Memory Speed | Up to 7200+ MHz (OC) |
| Memory Channel | Dual Channel |
| Memory Features | Supports Intel® XMP 3.0 OCSupports non-ECC, un-buffered memory |
| Graphics Output | 1 × HDMI1 × DisplayPort |
Hurry and get discounts on all Apple devices up to 20%
Sale_coupon_15
Original price was: ₹44,999.00.₹23,099.00Current price is: ₹23,099.00.
Pick up from the Woodmart Store
To pick up today
Free
Courier delivery
Our courier will deliver to the specified address
2-3 Days
Free
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
Free
Warranty 1 year
Free 30-Day returns
Payment Methods:
| Category | Details |
|---|---|

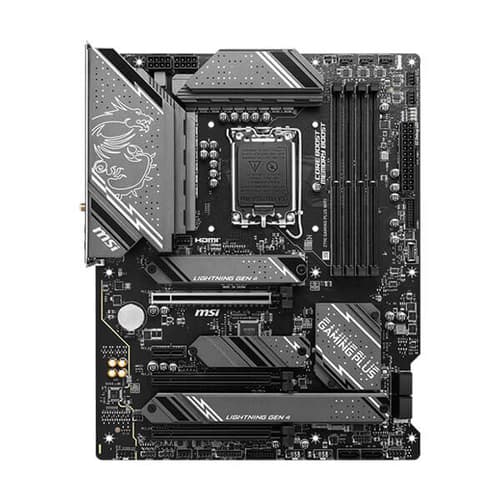

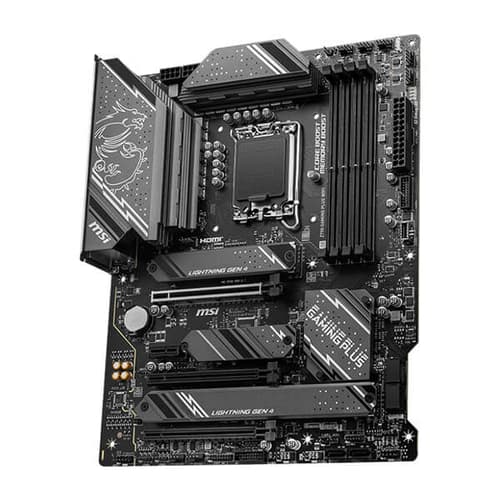

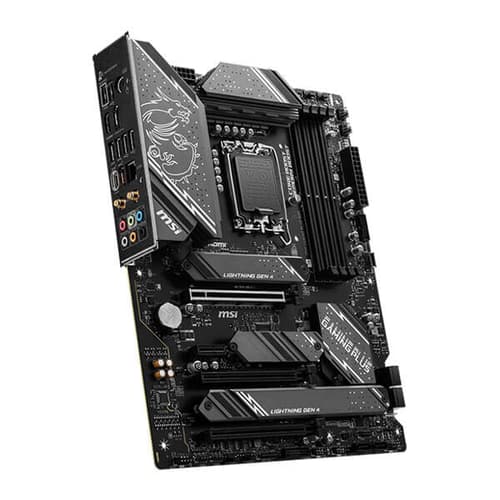

| Model | MSI Z790 GAMING PLUS WIFI |
| Platform | INTEL |
| Chipset | Intel® Z790 |
| Socket | LGA 1700 |
| CPU Support | Intel® Core™ 14th / 13th / 12th GenIntel® Pentium® GoldIntel® Celeron®Intel® Processor 300(T) |
| Memory Type | DDR5 |
| Memory Slots | 4 × DDR5 DIMM |
| Max Memory Capacity | 192 GB |
| Memory Speed | Up to 7200+ MHz (OC) |
| Memory Support | 7200+(OC) / 7000(OC) / 6800(OC) / 6600(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5800(OC)5600 / 5400 / 5200 / 5000 / 4800 (JEDEC) |
| Memory Features | Intel® XMP 3.0Dual-Controller Dual-ChannelNon-ECC, Un-buffered |
| Power Design | 14+1+1 Duet Rail Power System with DrMOSDual 8-pin CPU PowerCore Boost, Memory Boost |
| PCB Design | 6-layer PCB, 2oz Thickened Copper |
| Thermal Solution | Extended Heatsink7W/mK MOSFET Thermal PadsAdditional Choke Thermal Pads |
| Graphics Output | 1 × HDMI™ 2.1 (4K @ 60Hz)1 × DisplayPort 1.4 (4K @ 60Hz) |
| Expansion Slots | 1 × PCIe 5.0 x16 (CPU)1 × PCIe 4.0 x4 (Chipset)2 × PCIe 3.0 x1 |
| Storage | 4 × M.2 PCIe 4.0 (2 support SATA mode)6 × SATA 6Gb/s |
| RAID Support | RAID 0 / 1 / 5 / 10 (SATA & NVMe) |
| USB Ports (Rear + Front) | USB 2.0 × 8USB 3.2 Gen1 × 6USB 3.2 Gen2 Type-A × 1USB 3.2 Gen2 Type-C × 1 (Front)USB 3.2 Gen2x2 Type-C × 1 (Rear) |
| LAN | Intel® 2.5Gbps LAN |
| Wireless | Intel® Wi-Fi 6E (2.4 / 5 / 6GHz, up to 2.4Gbps) |
| Bluetooth | Bluetooth® 5.3 |
| Audio | Realtek® ALC8977.1-Channel HD AudioS/PDIF Output |
| Internal Connectors | 2 × CPU Power1 × CPU Fan, 1 × Pump Fan6 × System Fans4 × USB 2.04 × USB 3.2 Gen1USB 3.2 Gen2 Type-CTPM 2.0 HeaderRGB & ARGB Headers |
| Debug / Utility | EZ Debug LED ×4Flash BIOS Button |

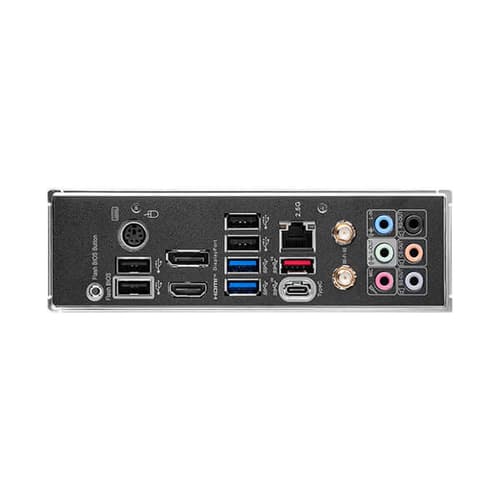

| Back Panel I/O | HDMI 2.1DisplayPortUSB 2.0USB 3.2 Gen1 & Gen2USB 3.2 Gen2x2 Type-C2.5G LANWi-Fi AntennaAudio Jacks |
| Form Factor | ATX |
| Dimensions | 243.84 × 304.8 mm |
| Operating System | Windows® 11 64-bitWindows® 10 64-bit |
| Warranty | 3 Years |
