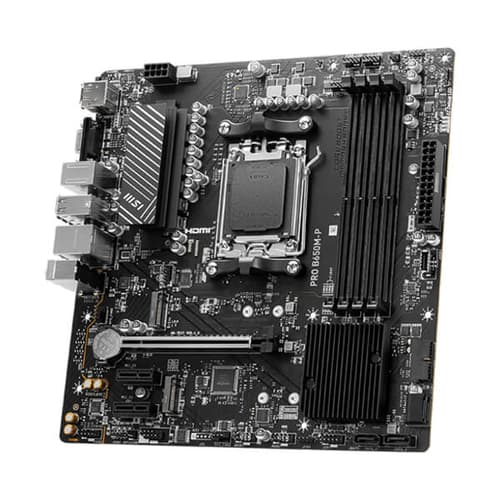

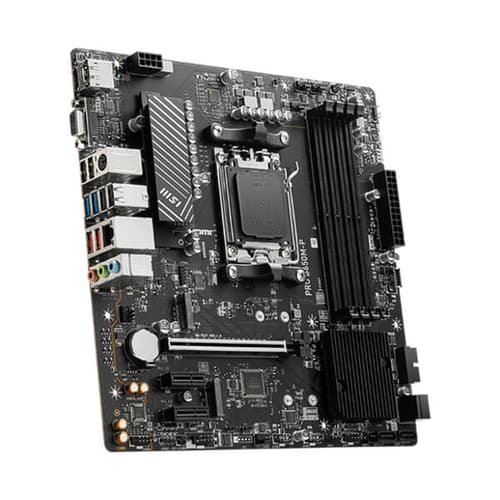

MSI Pro B650M-P M-ATX Motherboard
MSI Pro B650M-P M-ATX Motherboard - Image 2
MSI Pro B650M-P M-ATX Motherboard - Image 3
MSI Pro B650M-P M-ATX Motherboard - Image 4
MSI Pro B650M-P M-ATX Motherboard - Image 5

MSI Pro B650M-P M-ATX Motherboard



Field Details
Brand MSI
Product Code / Model MSI PRO B650M-P
Product Category AMD Motherboard
Chipset AMD B650
Socket AM5
Form Factor Micro-ATX

Apple Shopping Event

Hurry and get discounts on all Apple devices up to 20%

Sale_coupon_15

Original price was: ₹25,999.00.Current price is: ₹10,499.00.

Add to compare
Add to wishlist
19 People watching this product now!
  • Pick up from the Woodmart Store

To pick up today

Free

  • Courier delivery

Our courier will deliver to the specified address

2-3 Days

Free

  • DHL Courier delivery

DHL courier will deliver to the specified address

2-3 Days

Free

  • Warranty 1 year

More details

  • Free 30-Day returns

More details

Payment Methods:

Description

Key Features

  • Supports AMD Ryzen™ 9000 / 8000 / 7000 Series desktop processors
  • Supports DDR5 memory, dual-channel up to 7200+ MHz (OC)
  • Core Boost: Premium PCB layout and digital power design to support more cores and deliver enhanced performance
  • Memory Boost: Advanced technology for pure data signals, ensuring optimal performance, stability, and compatibility
  • High-Quality PCB: 6-layer PCB with 2oz thickened copper for improved durability and signal stability
  • Lightning-Fast Gaming Experience: PCIe 4.0 slots and Lightning Gen4 x4 M.2 support
  • 2.5G LAN: Upgraded networking solution for professional and multimedia use, delivering a secure, stable, and high-speed connection
  • Audio Boost: Studio-grade sound quality for an immersive gaming experience
  • Steel Armor: Reinforced PCIe slots to protect graphics cards from bending and EMI, ensuring better stability and durability



Motherboard Specifications :-

General Information

Category Specification
Platform AMD
Socket AM5
CPU Support AMD Ryzen™ 9000 / 8000 / 7000 Series
Chipset AMD B650
Form Factor Micro-ATX
Warranty 3 Years Manufacturer Warranty

Memory Specifications

Feature Details
Memory Type DDR5
Memory Channels Dual Channel
Memory Speed Up to 7200+ MHz (OC)
Maximum Memory 256 GB
Memory Mode Dual-Channel Supported
ECC Support Non-ECC, Un-buffered
Memory Profiles AMD EXPO™ Supported

Graphics Output

Port Quantity
HDMI 1
DisplayPort 1
VGA 1

Expansion Slots

Slot Type Details
PCIe x16 Slot 1 × Slot
PCIe x16 Bandwidth x16 (Ryzen™ 9000 / 7000 Series)
x8 (Ryzen™ 8700 / 8600 / 8400 Series)
x4 (Ryzen™ 8500 / 8300 Series)
PCIe x1 Slots 2 × Slots
PCI_E1 PCIe 4.0, up to x16 (From CPU)
PCI_E2 PCIe 3.0, up to x1 (From Chipset)
PCI_E3 PCIe 3.0, up to x1 (From Chipset)

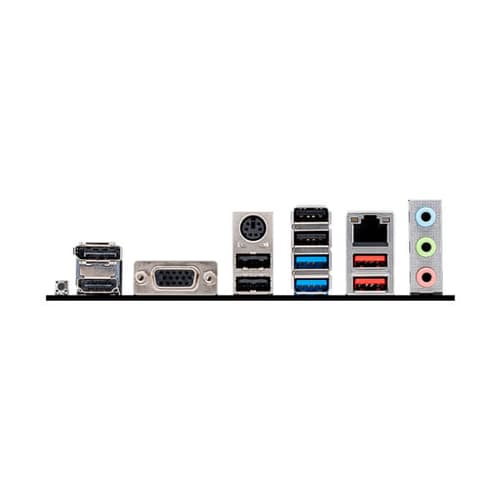

Back Panel I/O Ports

Port Type Availability
DisplayPort Yes
HDMI Yes
VGA Yes
PS/2 Keyboard / Mouse Yes
USB 2.0 Yes
USB 3.2 Gen 1 (5Gbps) Type-A Yes
USB 3.2 Gen 2 (10Gbps) Type-A Yes
2.5G LAN (RJ-45) Yes
Audio Jacks Yes
Flash BIOS Button Yes

Internal I/O Connectors

Connector Quantity
24-pin ATX Power Connector (ATX_PWR) 1
CPU Power Connector (CPU_PWR) 1
CPU Fan Header 1
Pump Fan Header 1
System Fan Headers 3
Front Panel Headers (JFP) 2
Chassis Intrusion Header (JCI) 1
Front Audio Header (JAUD) 1
COM Port Header (JCOM) 1
Addressable RGB V2 Headers (JARGB_V2) 2
RGB LED Headers (JRGB) 2
TPM Header (TPM 2.0) 1
USB 2.0 Headers 4
USB 3.2 Gen 1 (5Gbps) Headers 2
USB 3.2 Gen 2 (10Gbps) Type-C Header 1
