| Category | Details |
|---|---|
| Motherboard | — |
| Platform | INTEL |
| Socket | LGA1851 |
| CPU Type | Intel® Core™ Ultra |
| Chipset | Z890 |
| Memory Type | DDR5 |
| Memory Speed | Up to 9200+ MT/s (OC) |
| Max Memory Support | 256 GB |
| Memory Channel | Dual Channel |
| Memory Features | Supports Intel POR Speed & JEDEC SpeedSupports Memory Overclocking & Intel XMP 3.0Supports Non-ECC, Un-buffered memorySupports CUDIMM |
| Graphics Port | 1 × HDMI2 × Type-C DisplayPort |
| Expansion Slots | 3 × PCI-E x16 |
| PCIe Configuration | PCI_E1: PCIe 5.0 x16 (From CPU)PCI_E2: PCIe 5.0 x8 (From CPU)PCI_E3: PCIe 4.0 x4 (From Chipset) |
| Wireless Networking | Wi-Fi 7Bluetooth 5.4 |
| LAN | 2.5G LAN5G LAN |

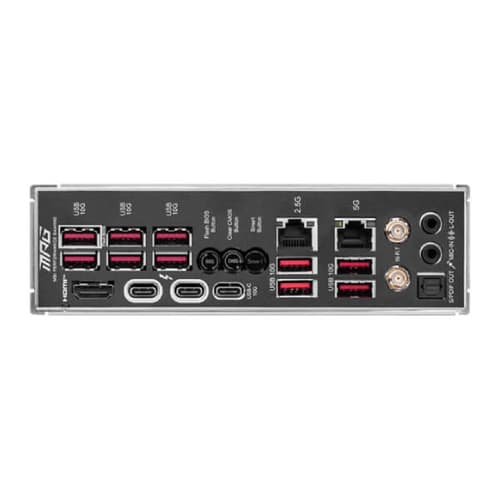

| Back Panel I/O Ports | USB 10Gbps Type-AUSB 10Gbps Type-CThunderbolt™ 4HDMI™Wi-Fi / Bluetooth AntennaAudio ConnectorsOptical S/PDIF OutFlash BIOS ButtonClear CMOS ButtonSmart Button |
| Internal Power Connectors | 1 × 24-pin ATX Power2 × CPU Power Connectors1 × PCIe Power Connector (8-pin)1 × Front Type-C Quick Charge Connector (PD_PWR1) |
| Fan & Cooling Headers | 1 × CPU Fan1 × Combo Fan (Pump/Sys Fan)5 × System Fan1 × Water Flow Connector1 × Thermal Sensor Connector |
| Internal I/O Headers | 1 × EZ Conn-header (JAF_2)2 × Front Panel (JFP)1 × Chassis Intrusion (JCI)1 × Front Audio (JAUD)1 × TPM Header (TPM 2.0)3 × Addressable RGB Gen2 (JARGB_V2)1 × RGB Header (JRGB) |
| Internal USB Headers | 4 × USB 2.04 × USB 5Gbps Type-A1 × USB 20Gbps Type-C |
| Form Factor | ATX |
| Warranty | 3 Years |
Hurry and get discounts on all Apple devices up to 20%
Sale_coupon_15
Original price was: ₹96,999.00.₹52,100.00Current price is: ₹52,100.00.
Pick up from the Woodmart Store
To pick up today
Free
Courier delivery
Our courier will deliver to the specified address
2-3 Days
Free
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
Free
Warranty 1 year
Free 30-Day returns
Payment Methods:
| Category | Details |
|---|---|

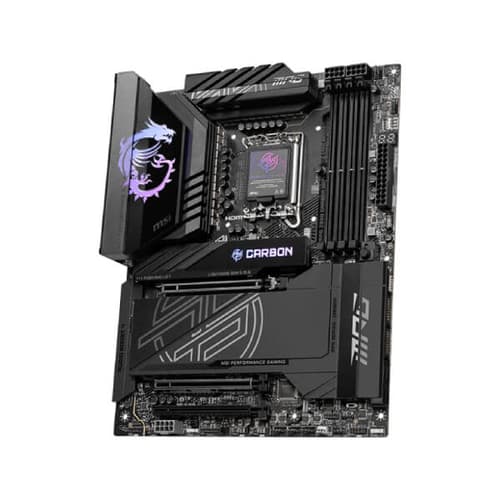

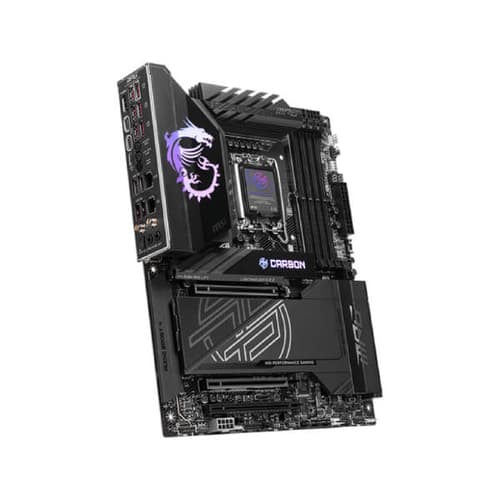

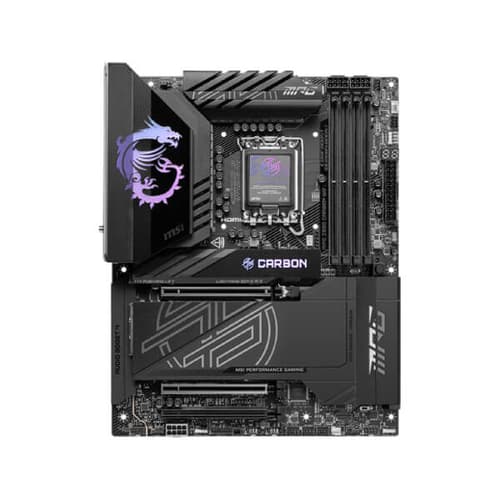

| Model | MPG Z890 CARBON WIFI |
| Platform | INTEL |
| Socket | LGA1851 |
| CPU Type | Intel® Core™ Ultra Processors (Series 2) |
| Chipset | Z890 |
| Memory Type | DDR5 |
| Memory Speed | Up to 9200+ MT/s (OC) |
| Memory Channel | Dual Channel |
| Power Design | 20+1+1+1 Phase Digital Power |
| CPU Power Connector | Dual 8-pin |
| PCB Design | 8-layer PCB, 2oz Thickened Copper, Server-grade |
| Expansion Slot | PCIe 5.0 x16 |
| M.2 Support | Lightning Gen 5 M.2 |
| Cooling Solution | Frozr Guard, Enlarged Heatsink with Heat-pipe, M.2 Shield Frozr |
| EZ DIY Features | EZ PCIe Release, EZ M.2 Shield Frozr II, EZ M.2 Clip II, EZ Antenna |
| Networking (LAN) | Intel Killer 5G LAN + 2.5G LAN |
| Wireless | Wi-Fi 7 |
| Thunderbolt | Thunderbolt™ 4 |
| Audio | Audio Boost 4 (Studio Grade Sound) |
