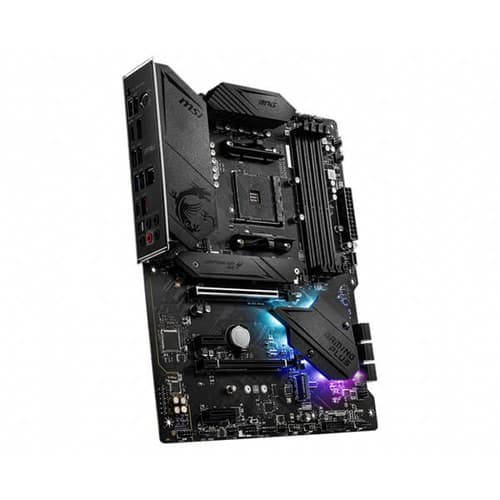

MSI MPG B550 Gaming Plus Motherboard
MSI MPG B550 Gaming Plus Motherboard - Image 2
MSI MPG B550 Gaming Plus Motherboard - Image 3
MSI MPG B550 Gaming Plus Motherboard - Image 4
MSI MPG B550 Gaming Plus Motherboard - Image 5

MSI MPG B550 Gaming Plus Motherboard

Category Specification
Platform AMD
Socket AM4
Supported CPUs Ryzen 5000, Ryzen 4000G, Ryzen 3000
Chipset B550
Memory Type DDR4
Max Memory 128 GB
Memory Speed Up to 4400+ MHz
Memory Channels Dual Channel
Memory Features Supports non-ECC UDIMM, ECC UDIMM (non-ECC mode), un-buffered memory
Graphics Ports 1 × HDMI, 1 × DisplayPort
Expansion Slots 1 × PCIe 4.0/3.0 x16 (PCI_E1), 1 × PCIe 3.0 x16 (PCI_E3, x4 speed), 2 × PCIe 3.0 x1
Storage Interfaces 6 × SATA 6Gb/s, 2 × M.2 (M-Key)
RAID Support RAID 0, 1, 10 for SATA; RAID 0, 1 for M.2 NVMe
Back Panel I/O PS/2 Combo, DisplayPort, HDMI, LAN (2.5G), USB 3.2 Gen 2 Type-A & Type-C, USB 3.2 Gen 1 Type-A, USB 2.0 ×2, HD Audio, Optical S/PDIF, Flash BIOS Button
Internal I/O 24-pin ATX, 8-pin CPU Power, 6 × SATA, 2 × M.2, USB 3.2 Gen1 Type-C, USB 3.2 Gen1 header (x2 ports), USB 2.0 headers (x4 ports), 4-pin CPU fan, 4-pin Water Pump Fan, 6 × System Fans, Front Panel Audio, 2 × System Panels, Chassis Intrusion, 4-pin RGB LED, 2 × 3-pin Rainbow LED, TPM, Clear CMOS
Multi-GPU Supports 2-Way AMD CrossFire
Form Factor ATX
Warranty 3 Years

Apple Shopping Event

Hurry and get discounts on all Apple devices up to 20%

Sale_coupon_15

Original price was: ₹20,999.00.Current price is: ₹13,499.00.

Add to compare
Add to wishlist
19 People watching this product now!
  • Pick up from the Woodmart Store

To pick up today

Free

  • Courier delivery

Our courier will deliver to the specified address

2-3 Days

Free

  • DHL Courier delivery

DHL courier will deliver to the specified address

2-3 Days

Free

  • Warranty 1 year

More details

  • Free 30-Day returns

More details

Payment Methods:

Description

 Important Notice

  • BIOS Update: May be required to support the latest Ryzen processors (up to 5th Gen).
  • Memory Speed: Maximum supported memory speed varies depending on the Ryzen CPU used.
  • Compatibility: For full compatibility details, please check the manufacturer’s website.

 Key Features

  • CPU Support: AMD Ryzen 5000 & 3000 Series desktop processors (excluding Ryzen 5 3400G & Ryzen 3 3200G) and AMD Ryzen 4000 G-Series desktop processors.
  • Memory: Supports DDR4 memory up to 4400 MHz (OC).
  • Gaming Performance: PCIe 4.0, Lightning Gen 4 x4 M.2 with M.2 Shield Frozr, AMD Turbo USB 3.2 Gen 2.
  • Power Design: Core Boost, Digital PWM IC, 2oz Thickened Copper PCB, DDR4 Boost.
  • Thermal Solution: Extended heatsink design and M.2 Shield Frozr for high performance and continuous gaming.
  • Pre-installed I/O Shield: Better EMI protection and easier installation.
  • Flash BIOS Button: Quick USB BIOS flash and optimized ClearCMOS function.
  • Audio Boost: Studio-grade sound quality for immersive gaming.
  • Multi-GPU Support: 2-Way AMD CrossFire Technology.
Feature Details
CPU Support AMD Ryzen 5000 & 3000 Series (excludes 3400G & 3200G), AMD Ryzen 4000 G-Series
Chipset AMD B550
Form Factor ATX (12 × 9.6 in / 30.5 × 24.4 cm)
Mounting 9 mounting holes
Warranty 3 Years

Memory

Feature Details
Memory Slots 4 × DDR4 DIMM
Max Memory 128 GB
Supported Speeds 1866 – 3200 MHz (JEDEC), 2667 – 4400+ MHz (OC, A-XMP)
Max Speed (per configuration) 1DPC 1R: 4400 MHz, 1DPC 2R: 3866 MHz, 2DPC 1R: 4000 MHz, 2DPC 2R: 3600 MHz
Channel Dual Channel
Features Supports non-ECC UDIMM, ECC UDIMM (non-ECC mode), Un-buffered memory

Expansion Slots

Slot Details
PCIe x16 1 × PCIe 4.0/3.0 (PCI_E1)
PCIe x16 1 × PCIe 3.0 (PCI_E3), supports x4 speed
PCIe x1 2 × PCIe 3.0
Notes PCI_E3 unavailable when M.2_2 is used; support depends on CPU installed

Graphics

Feature Details
Ports 1 × HDMI (max 4096×2160 @24Hz), 1 × DisplayPort (max 4096×2160 @60Hz)
Max Shared Memory 16 GB
Notes Depends on CPU graphics support

Storage

Interface Details
SATA 6 × SATA 6Gb/s
M.2 2 × M.2 (Key M)
M2_1 PCIe 4.0/3.0 x4 & SATA, supports 2242/2260/2280/22110
M2_2 PCIe 3.0 x4, supports 2242/2260/2280
RAID SATA: 0, 1, 10; M.2 NVMe: 0, 1

USB

Controller Ports
AMD B550 3 × USB 3.2 Gen 1 (5Gbps, incl. 1 Type-C internal, 2 via internal header), 8 × USB 2.0 (4 rear, 4 internal)
AMD Processor 2 × USB 3.2 Gen 2 (1 Type-A, 1 Type-C, rear), 2 × USB 3.2 Gen 1 Type-A (rear)

Networking

Feature Details
LAN Realtek 8111H Gigabit LAN
Wi-Fi Not included (depends on motherboard variant)

Audio

Feature Details
Codec Realtek ALC892
Channels 7.1-Channel HD Audio
Optical S/PDIF OUT supported

LED & Indicators

Feature Details
EZ LED Control 1 × switch
EZ Debug LED 4 × LEDs

Internal Connectors

Connector Quantity
24-pin ATX Power 1
8-pin CPU Power 1
CPU Fan 1 × 4-pin
Water Pump Fan 1 × 4-pin
System Fans 6 × 4-pin
SATA 6 × 6Gb/s
M.2 Slots 2 × M-Key
USB 1 × USB 3.2 Gen 1 Type-C, 1 × USB 3.2 Gen 1 header (supports 2 more), 2 × USB 2.0 headers (supports 4 more)
Front Panel Audio 1
System Panel 2
Chassis Intrusion 1
RGB LED 1 × 4-pin, 2 × 3-pin Rainbow
TPM Module 1
Clear CMOS 1

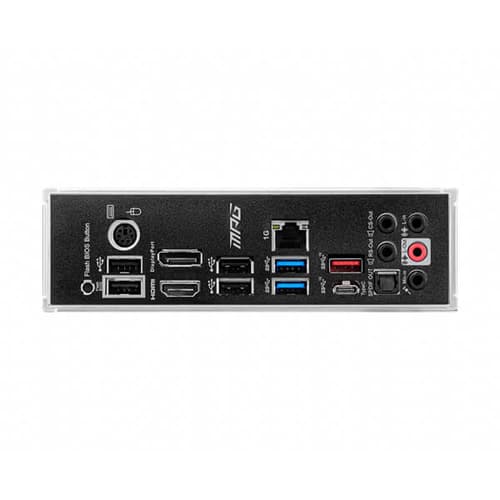

Back Panel Ports

  • PS/2 Combo Port
  • DisplayPort
  • HDMI
  • LAN Port
  • USB 3.2 Gen 2 10Gbps (Type-A)
  • USB 3.2 Gen 2 10Gbps (Type-C)
  • USB 3.2 Gen 1 5Gbps (Type-A)
  • USB 2.0 × 2
  • HD Audio Connectors
  • Optical S/PDIF OUT
  • Flash BIOS Button

Hardware Monitor

  • CPU / System / Chipset temperature detection
  • CPU / System / Pump fan speed detection & control
  • Overheating and fan fail warnings
