| Item | Details |
|---|---|
| Model | GIGABYTE B450M DS3H WIFI |
| Platform | AMD |
| Socket | AM4 |
| Chipset | AMD B450 |
| Form Factor | Micro-ATX |
| Dimensions | 24.4 cm × 21.5 cm |
| Warranty | 3 Years |
Hurry and get discounts on all Apple devices up to 20%
Sale_coupon_15
Original price was: ₹10,370.00.₹8,000.00Current price is: ₹8,000.00.
Pick up from the Woodmart Store
To pick up today
Free
Courier delivery
Our courier will deliver to the specified address
2-3 Days
Free
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
Free
Warranty 1 year
Free 30-Day returns
Payment Methods:
| Supported Processors |
|---|
| Ryzen™ 5000 Series |
| Ryzen™ 5000 G-Series |
| Ryzen™ 4000 G-Series |
| Ryzen™ 3000 / 2000 / 1000 Series |
| Ryzen™ with Radeon™ Vega Graphics |
| Athlon™ with Radeon™ Vega Graphics |
| Feature | Details |
|---|---|
| Memory Type | DDR4 |
| Memory Slots | 4 × DIMM |
| Max Capacity | 128GB |
| Architecture | Dual Channel |
| Memory Speed | Up to 3600 MHz (OC) |
| ECC Support | ECC Unbuffered (non-ECC mode) |
| XMP Support | Yes |
| Output | Details |
|---|---|
| HDMI | 1 × HDMI 2.0 (4K @ 60Hz, HDCP 2.2) |
| Shared Memory | Up to 16GB |
| Note | Output depends on CPU graphics support |
| Slot | Details |
|---|---|
| PCIe x16 | 1 × PCIe 3.0 (x16) |
| PCIe x16 (x1 mode) | 1 |
| PCIe x1 | 1 × PCIe 2.0 |
| Interface | Details |
|---|---|
| M.2 | 1 × M.2 (PCIe 3.0 x4/x2 & SATA, 2242/2260/2280/22110) |
| SATA | 4 × SATA 6Gb/s |
| RAID | RAID 0 / 1 / 10 |
| Feature | Details |
|---|---|
| Controller | Realtek® GbE LAN |
| Speed | 1 Gbps |
| Software | cFosSpeed Internet Accelerator |
| Feature | Details |
|---|---|
| Wi-Fi | 802.11 a/b/g/n/ac (2.4 & 5 GHz) |
| Bluetooth | Bluetooth 5.0 |
| Module | AzureWave (Realtek RTL8821CE) |
| Feature | Details |
|---|---|
| Codec | Realtek® HD Audio Codec |
| Channels | 2 / 4 / 5.1 / 7.1 |
| Audio Features | High-Quality Capacitors, Audio Noise Guard |
| S/PDIF | Supported |

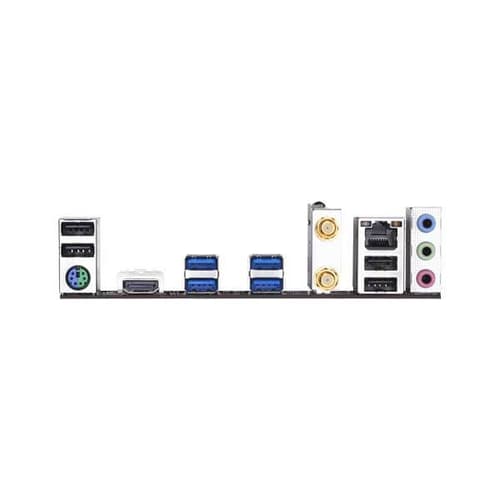

Rear Panel
Internal
| Ports |
|---|
| PS/2 Keyboard / Mouse |
| HDMI |
| 4 × USB 3.1 Gen 1 |
| 4 × USB 2.0 |
| 2 × SMA Wi-Fi Antenna Connectors |
| RJ-45 LAN |
| 3 × Audio Jacks |
| Connector Type | Quantity |
|---|---|
| 24-pin ATX Power | 1 |
| 8-pin CPU Power | 1 |
| CPU Fan Header | 1 |
| System Fan Header | 1 |
| M.2 Slot | 1 |
| SATA 6Gb/s | 4 |
| USB 3.1 Gen 1 Header | 1 |
| USB 2.0 Headers | 2 |
| RGB LED Header | 1 |
| Addressable RGB Headers | 2 |
| S/PDIF Header | 1 |
| TPM Header | 1 |
| Serial Port Header | 1 |
| Clear CMOS Jumper | 1 |
| Category | Details |
|---|---|
| BIOS | AMI UEFI BIOS (128 Mb Flash) |
| BIOS Utilities | Q-Flash, Xpress Install |
| Monitoring | Voltage, Temperature, Fan Speed, Overheat & Fan Fail Alerts |
| I/O Controller | iTE® I/O Controller |
| Item | Details |
|---|---|
| Software | APP Center, EasyTune, RGB Fusion, Smart Backup |
| Bundled Software | Norton® Internet Security (OEM), cFosSpeed |
| OS Support | Windows 10 (64-bit), Windows 7 (64-bit)* |
* Windows 7 requires compatible AMD CPUs.
