| Specification Category | Details |
|---|---|

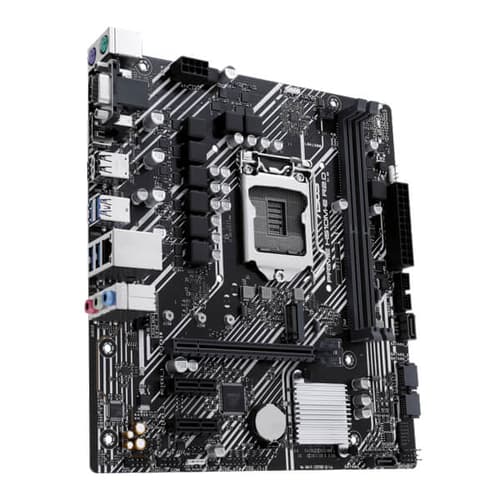

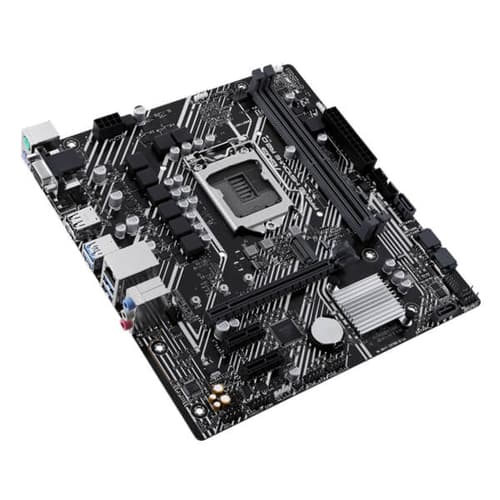

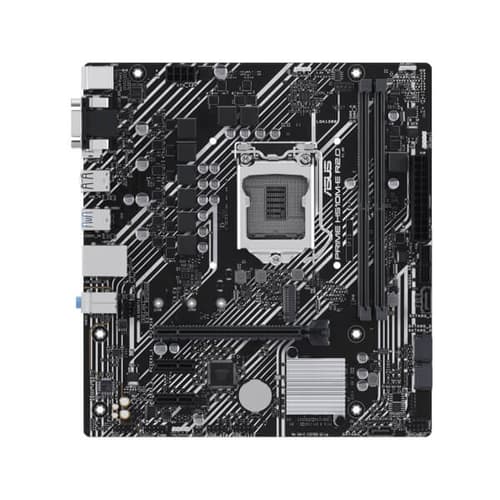

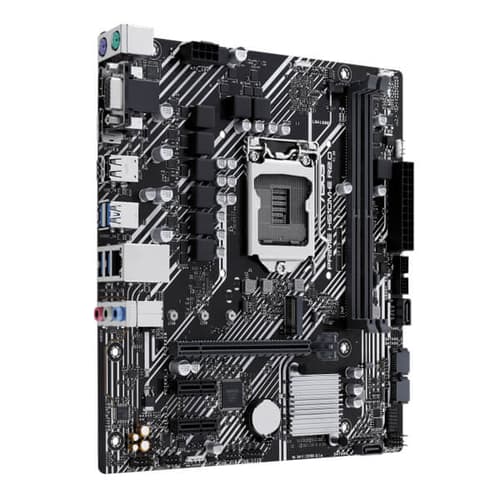

| Model Name | ASUS Prime H510M-E R2.0 |
| Manufacturer | ASUS |
| Platform / Chipset | Intel H510 |
| Form Factor | Micro-ATX |
| CPU Socket | LGA 1200 |
| Supported CPUs | Intel Core 10th Gen / 11th Gen (e.g., i3/i5/i7/i9) |
| Memory Type | DDR4 |
| Memory Slots | 2 × DDR4 DIMM |
| Maximum Memory Capacity | Up to 64 GB (varies by BIOS) |
| Supported Memory Speeds | DDR4 2666 – 3200 MT/s (based on CPU and board limits) |
| Integrated Graphics Support | Yes (with compatible Intel CPU iGPU) |
| Display Outputs | HDMI, D-Sub (VGA) |
| PCIe x16 Slot | 1 × PCIe 4.0 x16 |
| Additional PCIe Slots | 1 × PCIe 3.0 x1 |
| M.2 Slots | 1 × M.2 PCIe 3.0 (varies by revision) |
| SATA Ports | 4 × SATA III (6 Gb/s) |
| RAID Support | No / Chipset limited |
| LAN (Wired) | 1 Gb Ethernet |
| Wi-Fi | Not included |
| Bluetooth | Not included |
| Audio | High-Definition Audio |
| Rear USB Ports | USB 3.2 Gen1, USB 2.0 |
| Internal USB Headers | USB 2.0 |
| Power Connectors | 24-pin ATX main + 8-pin CPU |
| Fan Headers | CPU fan + system fan headers |
| RGB/ARGB Headers | Optional (board dependent) |
| BIOS | ASUS UEFI BIOS |
| Special Features | ASUS 5X Protection (basic hardware safeguards) |
| Operating System Support | Windows 10 / Windows 11 (64-bit) |
| Board Dimensions | Standard Micro-ATX |
| Warranty | 3-year ASUS warranty |
