| Category | Details |
|---|---|
| Platform | Intel |
| Socket | LGA1700 |
| CPU Support | 14th Gen Intel Core13th Gen Intel Core12th Gen Intel CorePentium GoldCeleron |
| Chipset | Intel B760 |
| Memory Speed | Up to 8000 MHz (OC) |
| Max Memory Support | 96 GB |
| Supported Memory Type | DDR5 |
| Memory Channel | Dual Channel |
Hurry and get discounts on all Apple devices up to 20%
Sale_coupon_15
Original price was: ₹19,000.00.₹11,550.00Current price is: ₹11,550.00.
Pick up from the Woodmart Store
To pick up today
Free
Courier delivery
Our courier will deliver to the specified address
2-3 Days
Free
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
Free
Warranty 1 year
Free 30-Day returns
Payment Methods:
| Category | Specification Details |
|---|---|

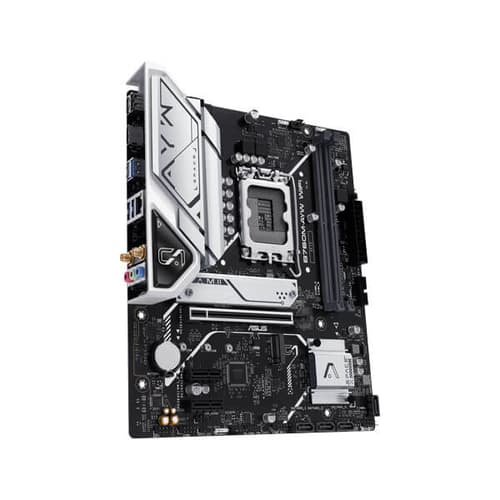

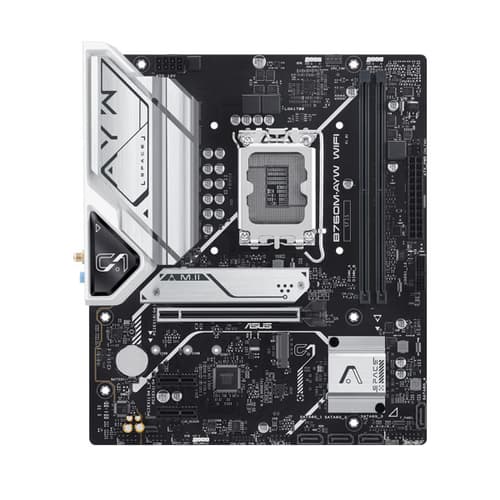

| Model | B760M-AYW WIFI |
| Platform | Intel |
| Form Factor | mATX (24.4 cm × 21.1 cm) |
| Socket | LGA1700 |
| CPU Support | Intel® Core™ 14th GenIntel® Core™ 13th GenIntel® Core™ 12th GenPentium® GoldCeleron® |
| Chipset | Intel B760 |
| Memory Slots | 2 × DDR5 DIMM |
| Max Memory Support | 96 GB |
| Memory Speed | Up to 8000 MHz (OC) |
| Memory Type | DDR5, Non-ECC, Unbuffered |
| Memory Channel | Dual Channel |
| Memory Profile Support | Intel XMP |
| Graphics Output | 1 × HDMI |
| PCIe Slots | 1 × PCIe 4.0 x162 × PCIe 4.0 x1 |
| Storage – M.2 | 2 × M.2 (PCIe 4.0 x4, Key M, 2242/2260/2280) |
| Storage – SATA | 4 × SATA 6Gb/s |
| RAID Support | SATA RAID 0 / 1 / 5 / 10 |
| Ethernet | Realtek 2.5Gb LAN (ASUS LANGuard) |
| Wireless | Wi-Fi 6 (802.11ax, 2.4/5GHz) |
| Bluetooth | Bluetooth v5.3 |
| Rear USB Ports | 4 × USB 3.2 Gen 1 Type-A2 × USB 2.0 Type-A |
| Front USB Support | USB 3.2 Gen 1 header (2 ports)USB 2.0 header (2 ports) |
| Audio Codec | Realtek 7.1 HD Audio (24-bit / 192 kHz) |
| Audio Features | Audio ShieldingPremium CapacitorsDedicated Audio PCB Layers |
| Back Panel I/O | USB PortsHDMIWi-Fi Module2.5Gb LAN3 × Audio Jacks |
| Fan Headers | 1 × CPU Fan2 × Chassis Fan |
| Power Connectors | 24-pin ATX8-pin CPU Power |
| RGB Headers | 3 × Addressable Gen 2 |
| Internal Connectors | Clear CMOS, COM Port, TPM, SPDIF Out, Front Panel Audio, System Panel |
| Special Features | ASUS 5X Protection IIIDIGI+ VRMSafeSlot Core+Stainless Steel I/O |
| Cooling Solution | VRM HeatsinkM.2 Heatsink |
| RGB Sync | ASUS Aura Sync |
| Software | Armoury CrateFan Xpert 2+AI Suite 3Two-Way AI Noise Cancelation |
| BIOS | 128Mb UEFI AMI BIOS |
| OS Support | Windows 11Windows 10 (64-bit) |
| Accessories | SATA Cables, Wi-Fi Antennas, I/O Shield, M.2 Screws, User Guide |
| Warranty | 3 Years |
